wilo水泵在工业领域

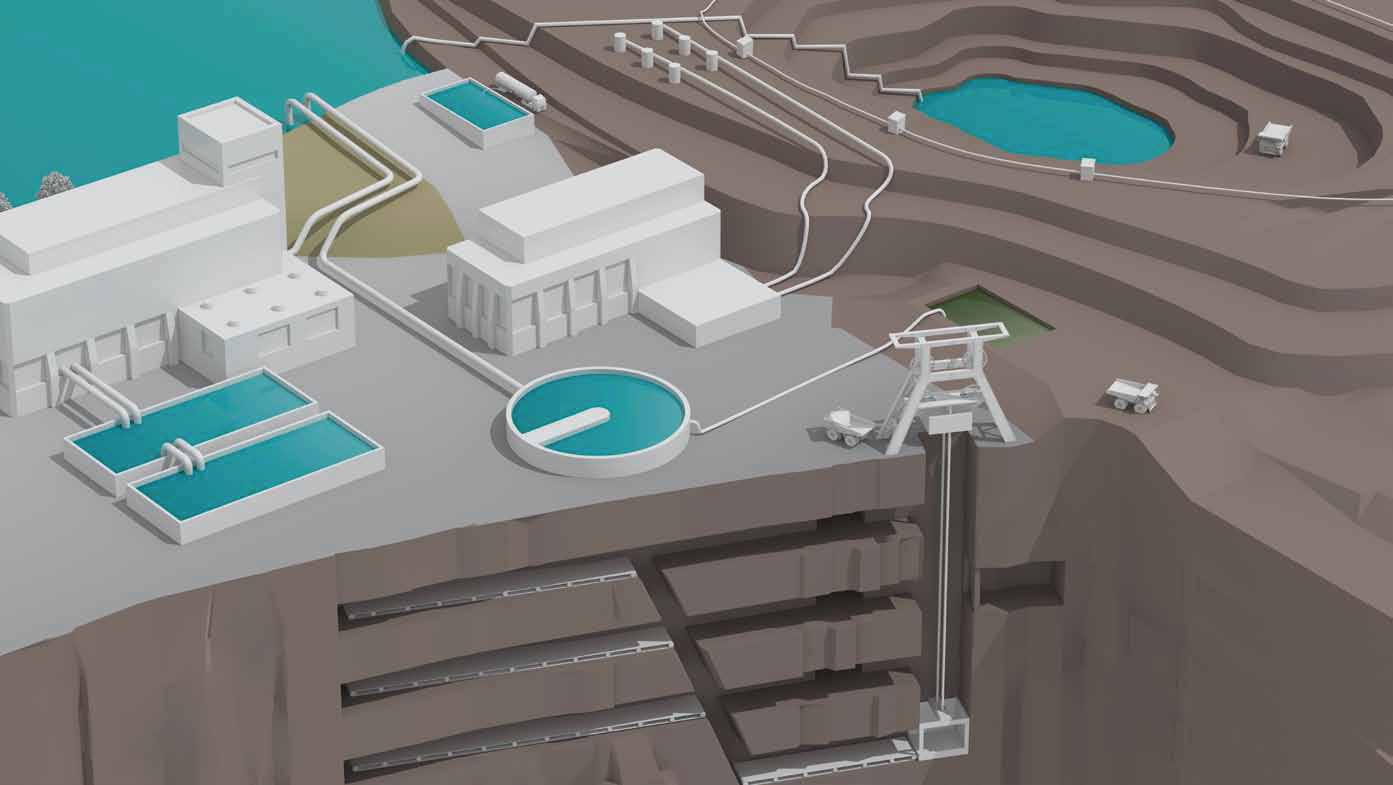

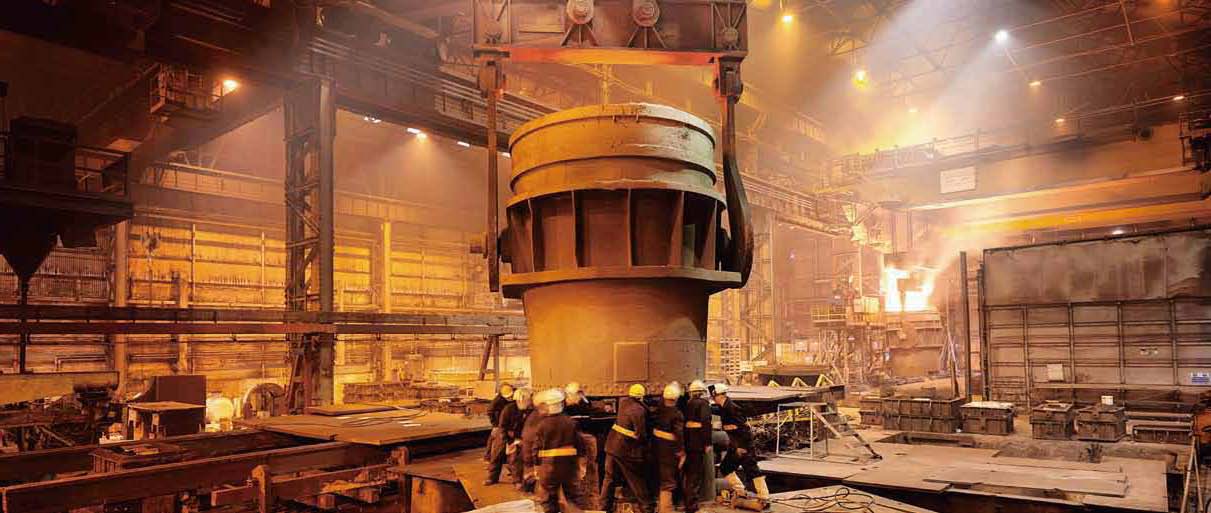

在食品&饮料业、冶金、采矿和电力行业，
威乐水泵将根据您的个性化需求为您量身定制解决方案。
威乐水泵将根据您的个性化需求为您量身定制解决方案。

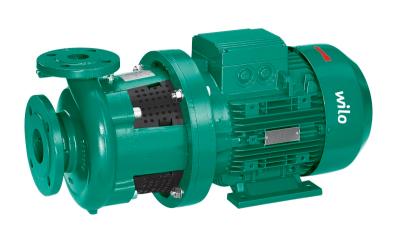

Wilo-CronoBloc-BL
結構
Glanded pump in block design with flange connection
應用
For pumping cold and hot water (in accordance with VDI 2035) without abrasive substances in heating, cold water and cooling water systems
特點/產品優勢
High-efficiency motors as standard; from 0.75 kW nominal motor power: motors with IE2 technology
Reduced life cycle costs due to optimised efficiency
High corrosion protection due to cataphoretic coating of the cast iron components
Standard condensate drainage holes in the motor housings
Application benefits in air-conditioning and cooling systems due to direct condensate drainage by means of optimised lantern design
Bidirectional mechanical seal with forced flushing
High worldwide obtainability of standard motors (according to Wilo specifications) and mechanical seals
Meets user requirements due to performance and main dimensions in accordance with EN 733 (DIN for norm pumps)

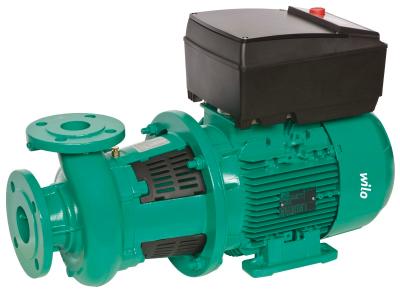

Wilo-CronoBloc-BL-E
結構
Electronically controlled glanded single pump in monobloc design with flange connection and automatic power adjustment.
應用
For pumping heating water (in accordance with VDI 2035), water-glycol mixtures, cooling water and cold water without abrasive substances in heating, cold water and cooling water systems.
特點/產品優勢
Motors with IE2 technology for higher efficiency fitted as standard
Energy savings due to integrated electronic control
Simple operation thanks to tried-and-tested red-button technology and display
Two configurable signal relays for run and fault signals
Access disable on the pump
Integrated full motor protection (PTC thermistor sensor) with trip electronics
High standard of corrosion protection thanks to cataphoretic coating
Pump bases with threaded hole for installation in the foundation
Condensate drainage holes as standard
Bidirectional mechanical seal with forced flushing
High worldwide obtainability of standard motors (according to Wilo specifications) and mechanical seals
Meets user requirements due to performance and main dimensions in accordance with EN 733 (DIN for norm pumps)
Wilo-CronoLine-IL
結構
Glanded pump in in-line design with flange connection
應用
For pumping heating water (in accordance with VDI 2035), water-glycol mixtures and cooling and cold water without abrasive substances in heating, cold water and cooling water systems
特點/產品優勢
High-efficiency motors as standard; from 0.75 kW nominal motor power: motors with IE2 technology
Reduced life cycle costs due to optimised efficiency
Standard condensate drainage holes in the motor housings
Can be used flexibly in air-conditioning and cooling systems, with application benefits due direct draining of condensate via optimised lantern design (patented)
High corrosion protection thanks to cataphoretic coating
Bidirectional mechanical seal with forced flushing
High worldwide availability of standard motors (according to Wilo specifications) and standard mechanical seals
Easy to install due to feet with threaded holes on pump housing
Wilo-CronoLine-IL-E
結構
Electronically controlled glanded double pump in in-line design with flange connection and automatic power adjustment
應用
For pumping heating water (in accordance with VDI 2035), water-glycol mixtures and cooling and cold water without abrasive substances in heating, cold water and cooling water systems
特點/產品優勢
Motors with IE2 technology for higher efficiency fitted as standard
Energy savings due to integrated electronic control
Simple operation with red-button technology and display
Integrated dual pump management
Two configurable signal relays for run and fault signals
Configurable fault response tailored to HVAC applications
Access disable on the pump
Integrated full motor protection (PTC thermistor sensor) with trip electronics
Functions and operation identical to Wilo-VeroLine-IP-E
High standard of corrosion protection thanks to cataphoretic coating
Condensate drainage holes as standard

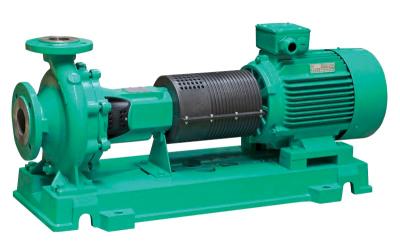

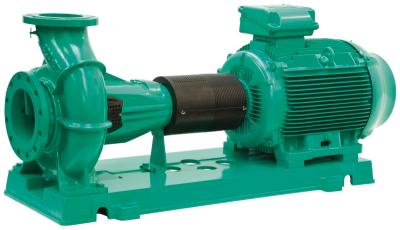

Wilo-CronoNorm-NL
結構
Single-stage low-pressure centrifugal pump with axial suction point, according to EN 733 and ISO 5199, mounted on a baseplate.
應用
Pumping clean or slightly contaminated water (max. 20 ppm) without solid matter for circulation, transfer and pressure boosting purposes
Pumping heating water in accordance with VDI 2035, water/glycol mixtures, cooling/cold water and industrial water.
Applications in municipal water supply, irrigation, building services, general industry, power stations, etc.
特點/產品優勢
Motors with IE2 technology for higher efficiency fitted as standard
Reduced life cycle costs through optimised efficiency
Mechanical seal independent of the direction of rotation, with forced flushing
Permanently lubricated, generously dimensioned roller bearings
Low NPSH values, best cavitation properties
world-wide high availability of IEC standard motors
Shaft coupling with or without intermediate sleeve
Shaft deflection satisfies the requirements of ISO 5199
Wilo-CronoNorm-NLG
結構
Single-stage, low-pressure centrifugal pump with axial suction, mounted on a baseplate.
應用
For pumping clean or slightly contaminated water (max. 20 ppm) without solid material, for circulation, transfer and pressure boosting purposes
For pumping cold and hot water (in accordance with VDI 2035) without abrasive substances in heating, cold water and cooling water systems
For applications in the municipal water supply, irrigation, building services, general industry, power stations, etc.
特點/產品優勢
Motors with IE2 technology for higher efficiency fitted as standard
Reduced life cycle costs through optimised efficiency
Mechanical seal independent of the direction of rotation, with forced flushing
Interchangeable casing wear ring
Permanently lubricated, generously dimensioned roller bearings
Low NPSH values, best cavitation properties
world-wide high availability of IEC standard motors

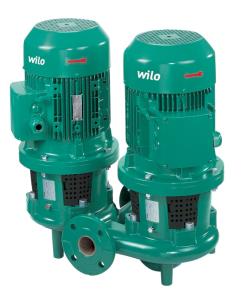

Wilo-CronoTwin-DL
結構
Glanded double pump in in-line design with flange connection
應用
For pumping heating water (in accordance with VDI 2035), water-glycol mixtures and cooling and cold water without abrasive substances in heating, cold water and cooling water systems
特點/產品優勢
High-efficiency motors as standard; from 0.75 kW nominal motor power: motors with IE2 technology
Reduced life cycle costs due to optimised efficiency
Standard condensate drainage holes in the motor housings
Can be used flexibly in air-conditioning and cooling systems, with application benefits due to direct draining of condensate via optimised lantern design (patented)
High corrosion protection thanks to cataphoretic coating
Bidirectional mechanical seal with forced flushing
High worldwide availability of standard motors (according to Wilo specifications) and standard mechanical seals
Reduction of space required and installation costs due to double pump design
Main/standby mode or peak-load operation (by means of external auxiliary device)
Peak-load operation (by means of external auxiliary device)

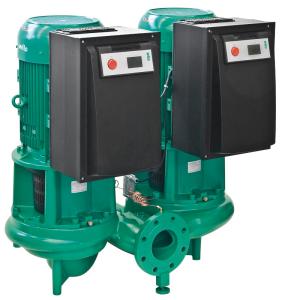

Wilo-CronoTwin-DL-E
結構
Electronically controlled glanded double pump in in-line design with flange connection and automatic power adjustment
應用
For pumping heating water (in accordance with VDI 2035), water-glycol mixtures and cooling and cold water without abrasive substances in heating, cold water and cooling water systems
特點/產品優勢
Motors with IE2 technology for higher efficiency fitted as standard
Energy savings due to integrated electronic control
Simple operation with red-button technology and display
Various operating modes: main/standby operation and parallel operation
Configurable signal relays for run and fault signals
Configurable fault response tailored to HVAC applications
Access disable on the pump
Integrated full motor protection (PTC thermistor sensor) with trip electronics
Functions and operation identical to Wilo-VeroTwin-DP-E
High standard of corrosion protection thanks to cataphoretic coating
